LR seamer

LR seamer

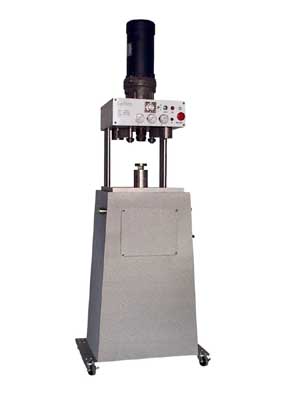

The LR seamer is designed to close heavy wall round containers with a minimum diameter of 3/4" and a maximum diameter of 9-3/8". Custom machines to accommodate larger sizes can be supplied. The standard machine will seam cans of heights from 1/2" to 14 ". Again, custom machines to accommodate taller sizes can be supplied. The maximum seaming rate is 18 cans per minute and is operator dependent. Typical actual rates are 12~13 cans per minute.

We can develop custom tooling/roller profiles to seam your most difficult cans.

Simply better

The LR seamer design eliminates the classic weak points of other semiautomatic seamers, resulting in fewer moving parts, a lighter, small, quieter machine with less required maintenance. All this at a lower cost than even rebuilt competitive machines.

Click here for a video of our LR seamer in a production environment.

Contact us for a quote.



Easy set up and operation Set up is fast and easy. Change overs for different heights can be accomplished in seconds and different can sizes can be set up in minutes. The ability to micro adjust each roller height and seaming pressure independently means optimum seaming even with lot to lot variations in cover and can tolerances. The air operated lift mechanism allows the operator to maintain a seated position for minimum fatigue.

High reliability The LR seamer design has been proven in years of continuous production closing millions of cans per machine with no more than routine greasing at 250,000 can intervals. There are no clutches to wear out or belts to break. Fewer moving parts means less wear, less downtime, and fewer service parts in inventory.

Small footprint The small footprint of the LR seamer allows it to be set up in the most convenient location for work flow. Its light weight and use of wheels means it can be quickly and easily repositioned to adapt to changing needs.

Clean and quiet The LR seamer is quiet and clean. No oil throw from rotating cam mechanisms, clutches, belts, or pulleys means it can be set up in laboratory spaces. The direct drive motor runs only when seaming and is so quiet operators need no special hearing protection.

Specifications Minimum can size dimension:
Maximum can size dimension:
Minimum can height:
Maximum can height:
Machine weight, approx:
Shipping weight, approx:
Floor space:
Height:
Electrical requirements:
Compressed air requirements:
Maximum speed:

Standard unit, custom designs available 3/4" (19 mm)
9-3/8 ” (238 mm)
1/2 ” (13 mm)
8” (203 mm)
250 lbs (114 kg)
490 lbs (223 kg)
25” X 16” (635 mm X 406 mm)
74” (1880 mm)
115/230 VAC, 50/60 HZ, 10/5 Amps
80 psi, 3 cfm
18 CPM
